FXAIR MAKE YOUR LIFE BETTER
6 Years
| Ask Lasest Price | |
| Brand Name : | FXAIR |
| Model Number : | 3000-60000 |
| Price : | USD |
| Payment Terms : | T/T |
| Supply Ability : | 500 unit/day |
| Delivery Time : | 10-20 working days |
Contact Person: Ms. Alexis Sun
Email: sale@fxairsolution.com
Website: www.fxairsolution.com
Phone:+0086 13360340046

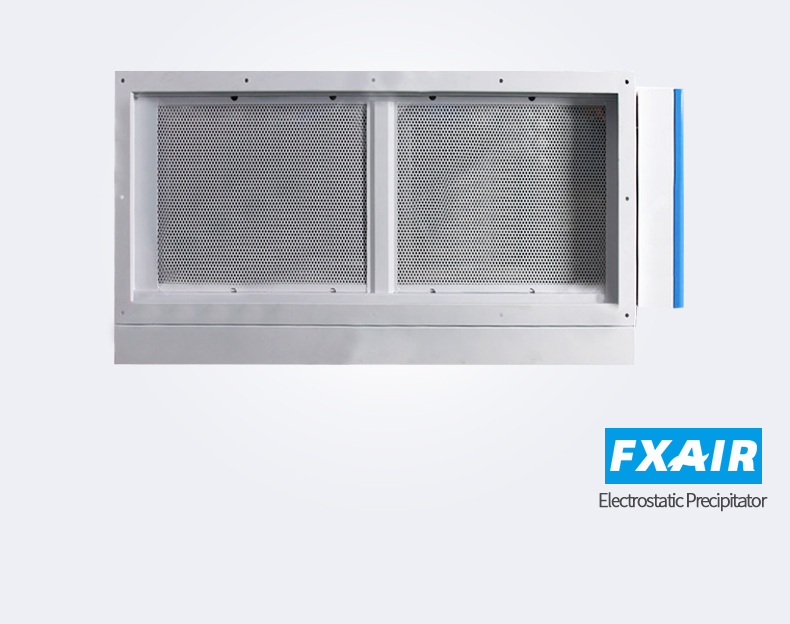

ESP is a device which can remove airborne particles with high-efficiency and low pressure drop.
It can filter particles of sizes from 0.01 microns to 100 microns, thus widely used filter particulates like
dust, oil mist and cooking fumes.
Typical application is to purify cooking fume from commercial kitchens of restaurants, delis, company
canteen, hospitals, schools and sport & entertainment complexes. It is also used for coffee roasting,
CNC machine shops and Cold Heading, cleaning room, smoking room and
other HVAC air purification.
When dirty air (fume or smoke) enters the ESP, the pollutant
particles pass through a high intensity
electrical field (IONIZER) which imparts an electrical charge to the particles, which range in size from
0.01 micron to 10 microns. The charged particles pass through a series of parallelized charged collector
plates. Particles are repelled by plates with the same polarity, but attracted and collected by plates with
opposite polarity. The pollutants particles collected are held in these plates and liquid pollutants (like oil
in cooking fume) can draain down to collection tray in the bottom. Then you get the clean air.
| Air Flow | DOP | Voltage | Frequency | Cell Type |
| 3000-60000cmh | ≥98% | 220V | 50HZ | Plant Type Cell |
|
|
